December 9, 2016

VT Industries update 2-201

Property selection for RCPB and PRIMPNT – See below

Correction for RCPB – added CTRLD WD to description

When RCPB is the veneer selected edges must be PAINTED – Do not use PRIMED
RCPB = BIRCH PNT GR ROT CUT B GR CTRLD WD N/A N/A with NAT POP 1/16 INCH edges

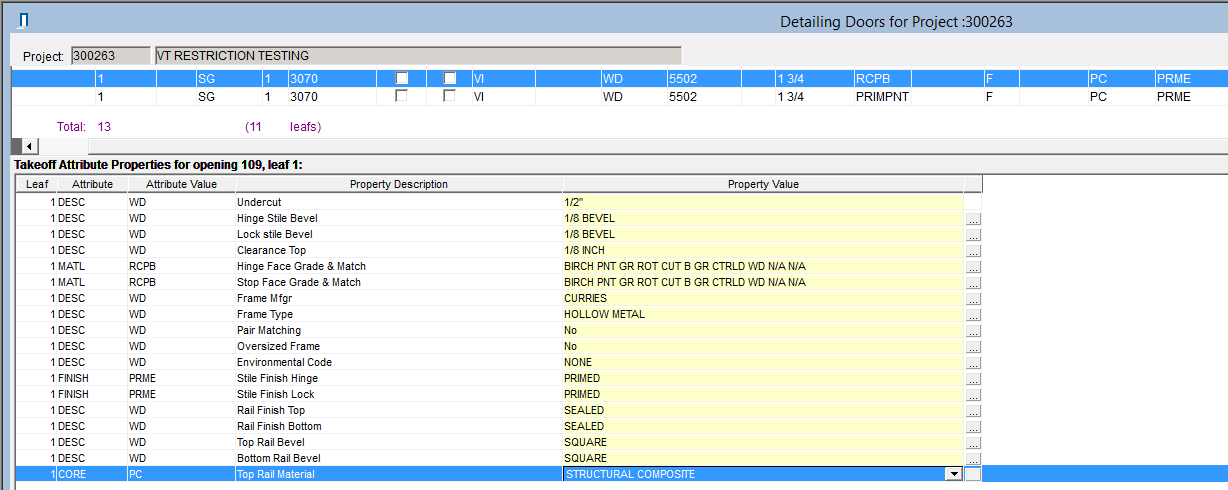

rcpb

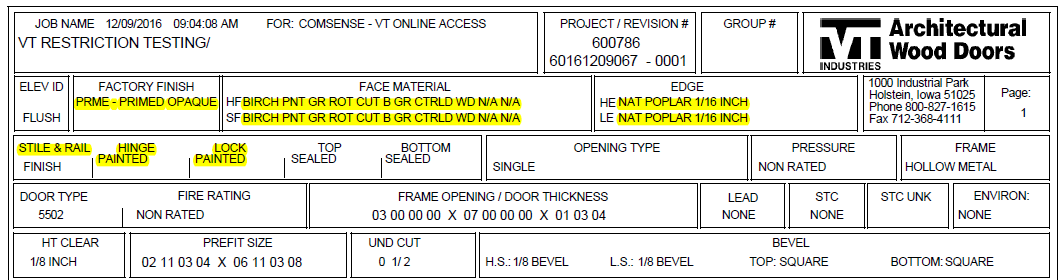

rcbp



When PRIMPNT is the veneer selected edges must be PRIMED – Do not us PAINTED

PRIMPNT = PAINTABLE SURFACE N/A NA N/A N/A with PRIMED edges = 3MM HDF PAINTABLE EDGE

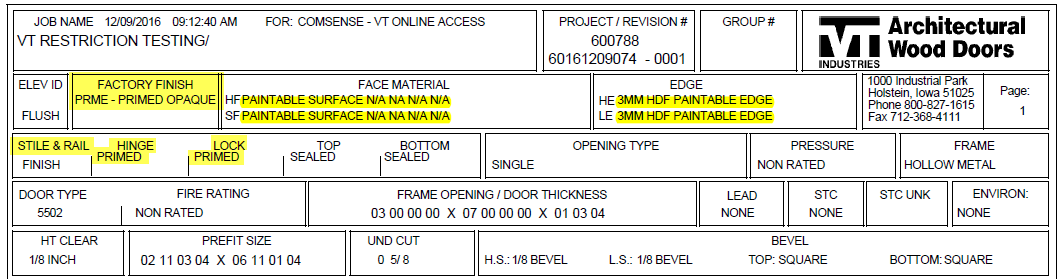

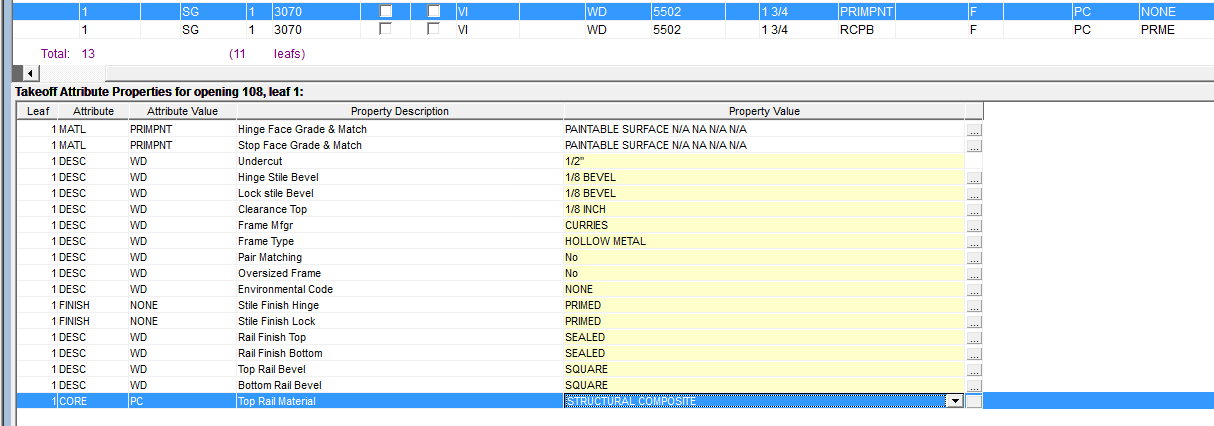

primpnt1

primpnt
